Qa1 My Quantum Open Source Foundation Project

Hello world, I'm Rodney Osodo. An undergrad student at Jomo Kenyatta University of Agriculture and Technology in Kenya. I've been interested in quantum computing for a while now and am so excited to share my learnings from my most recent experience with quantum computing.

This is my quantum open source foundation project on building a quantum variational classifier using a heart attack dataset. The purpose of this project was to help me gain insight into the actual construction of a quantum model, applied to real data. By sharing these insights, I hope to help many of you understand and learn much of the dynamics accompanied with quantum machine learning, which I grasped whilst doing this project. This will be a series of blogs in the order of:

1. Classical pre-processing of data, this one
2. Explaining the workings of a variational quantum model
3. Explain my finds and look at the best models

Ultimately, we will:

• Learn how a variational circuit works
• Explore the different types of optimizers in Qiskit
• Get a firmer understanding of quantum machine learning (hopefully! 😁)

My project plan is to:

1. Explore a specific dataset and pre-process it. For this project, we decided to use the heart attack data as our baseline. This is because, in medical aspects, heart attack is the leading disease that causes death. In computation aspect, the data was rather small and could easily be fitted on NISQ computers. We also used the iris dataset and wine datasets for validation.
2. Create a quantum neural network (AKA variational classifier) by combining a featuremap, variational circuit and measurement component (don't worry, I will explain what these components mean in detail).
3. Explore different types of optimizers, featuremaps, depths of featuremaps and depths of the variational circuit.
4. Explain my observations based on the best 10 model configurations.
5. Try to understand why these models performed the best and see if they are able to generalize well on new data.

Exploratory Data Analysis

Exploratory Data Analysis (EDA) refers to the critical process of performing initial investigations on a dataset so as to discover patterns, spot anomalies, test hypotheses and check assumptions. It it usually good practice in data science to explore the data first before getting your hands dirty and starting to build models.

My EDA process was short as the series topic alluded earlier, I would like to focus on quantum machine learning rather than dwell on data science!

Data explorations

To start off, we imported necessary libraries: pandas, numpy, matplotlib, seaborn and pandas profiling, and loaded our dataset

data = pd.read_csv(DATA_PATH)

The original dataset can be found here.

We then checked the shape of the dataset and found that we have 14 columns — that is 13 features and one target variable. We have 294 rows implying we have 294 datapoints which we will use to train and test our model. When we check our columns we see the actual names in the heading. The explanations of the each column is as follows:

print(data.columns)

Index(['age', 'sex', 'cp', 'trestbps', 'chol', 'fbs', 'restecg', 'thalach', 'exang', 'oldpeak', 'slope', 'ca', 'thal', 'num       '], dtype='object')

Attribute Information

• Age (age in years)
• Sex (1 = male; 0 = female)
• CP (chest pain type)
• TRESTBPS (resting blood pressure (in mm Hg on admission to the hospital))
• CHOL (serum cholestoral in mg/dl)
• FPS (fasting blood sugar > 120 mg/dl) (1 = true; 0 = false)
• RESTECH (resting electrocardiographic results)
• THALACH (maximum heart rate achieved)
• EXANG (exercise induced angina (1 = yes; 0 = no))
• OLDPEAK (ST depression induced by exercise relative to rest)
• SLOPE (the slope of the peak exercise ST segment)
• CA (number of major vessels (0 - 3) colored by flourosopy)
• THAL (3 = normal; 6 = fixed defect; 7 = reversable defect)
• num ==> TARGET (1 or 0)

When we look at the head of the data, we see some missing values labeled ?. We will try and fix this later. We proceed and check the info of the data and see most columns are under dtype object instead of float64. We will also need to fix this later on. This is because a dtype object can't be understood by our model. As our model only understands numerical values e.g float and integers.

When we check the unique values of each column,

def check_unique(df):
    """
    Checks the unique value in each column
    :param df: The dataframe
    """
    for col in df.columns:
        unique = df[col].unique()
        print("Column: {} has {} unique values\n".format(col, unique))

we see that sex, cp , fbs, exang, oldpeak, slope, ca, thal and num are categorical variables, while the others are continuous variables. This will help inform us when deciding how to fill values with null spaces.

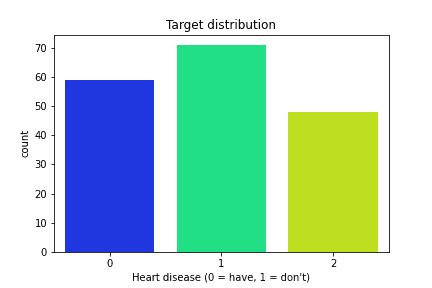

When we look at the target distribution, we can see that they are almost balanced, since one of the classes isn't more than 2/3 of the dataset.

When we look at the age distribution we see that most of the people are male:

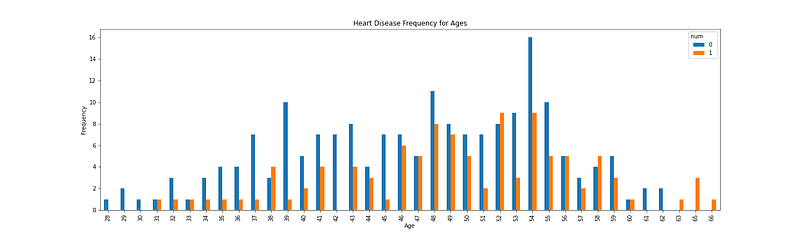

We can definitely see that as you age, you are more prone to a heart attack until the age of 57, where your chances interestingly start reducing. At the age of 54 is the peak age where most people are susceptible to a heart attack.

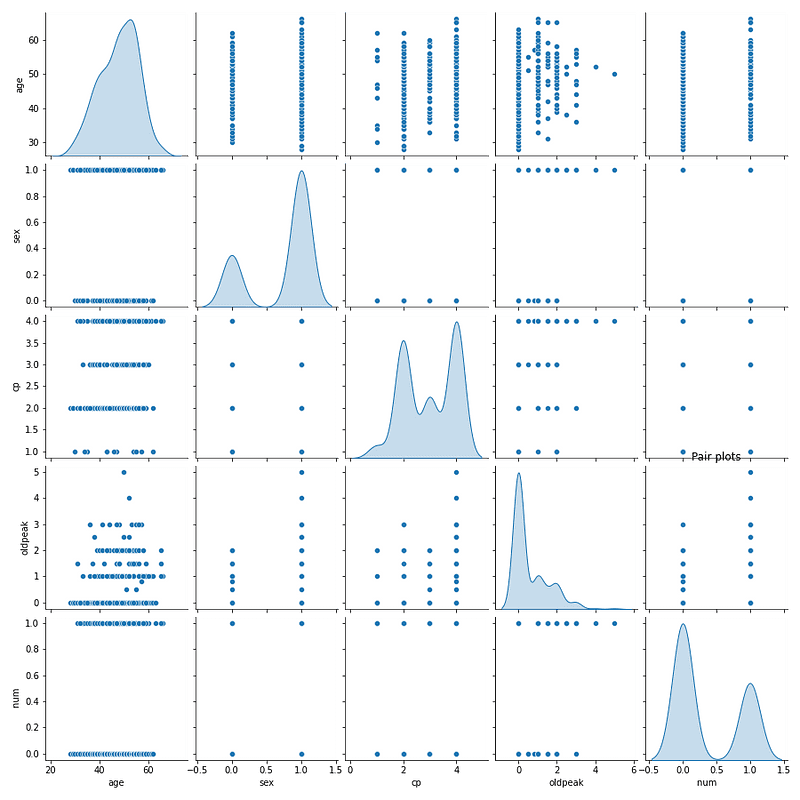

This pairplot shows us the distribution of every class.

Data cleaning

1. We first change the column name and the target variable as it has spaces

data = data.rename(columns={'num       ':'num'})

2. When we check the values, we see that the null values were recorded as ? in the dataset. One way of handling this is to change the ? in the data to be np.Nan.

def fix_missing_values(df):
    """
    Changes ? in the data to be np.Nan
    :param df: The dataframe
    :return df: Fixed dataframe
    """
    cols = df.columns
    for col in cols:
        for i in range(len(df[col])):
            if df[col][i] == '?':
                df[col][i] = np.NaN
    return df

3. We change the data type of the object to float64

def change_dtype(df):
    """
    Changes the data type from object to float64
    :param df: The dataframe
    :return df: Fixed dataframe
    """
    cols = df.columns
    for col in cols:
        if df[col].dtype == 'O':
            df[col] = df[col].astype("float64")
    return df

4. Fixing mixing values: Handling missing data in machine learning is important as it may lead to drawing inaccurate inference from the data.

We will delete the columns with more than half of its members empty. This is because if we try and fill them, most of the entries will have more fabricated values than real values.

• ca
• thal
• slope

Columns that have continuous values and the null values that are not less than half, we'll try and fix this by either replacing with the mean, mode or median. For our case I used mean values for:

• trestbps
• chol
• thalach

These, we will fix with the mode value since they are either 0 or 1:

• fbs
• exang
• restecg

def fix_missing_values(df):
    """
    Fixes the missing values by either deleting or replacing
    :param df: The dataframe
    :return df: Fixed dataframe
    """
    def delete_missing_values(df):
        """
        Deletes the column with Null values which are less than half of its values
        """
        df = df[['age', 'sex', 'cp', 'trestbps', 'chol', 'fbs', 'restecg', 'thalach','exang', 'oldpeak', 'num']]
        return df
    def fill_with_mean(df):
        """
        Fills the NaN values with the mean value of the column
        """
        cols = ['trestbps', 'chol', 'thalach']
        for col in cols:
            df[col].fillna(value=df[col].mean(), inplace=True)
        return df
    def fill_with_mode(df):
        """
        Fills the NaN values with the mode value of the column
        """
        cols =['fbs', 'restecg', 'exang']
        for col in cols:
            df[col].fillna(value=df[col].mode()[0], inplace=True)
        return df
    df = delete_missing_values(df)
    df = fill_with_mean(df)
    df = fill_with_mode(df)
    return df

5. We remove duplicate rows:

data.drop_duplicates(inplace=True)

Profiling

One way of doing better and faster exploratory data analysis in a very short time, is to use pandas profiling. It basically returns an interactive report in HTML format which is quick to analyse the data.

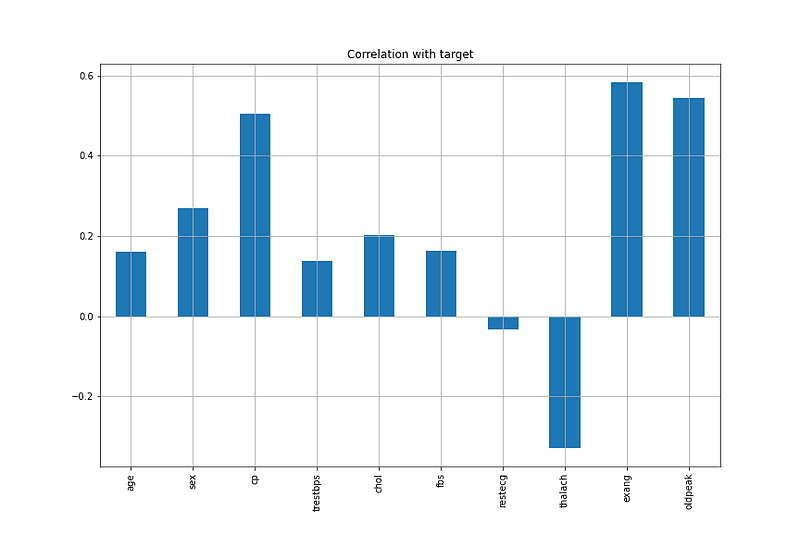

We first check the correlation of the columns to the target variable:

data.drop('num', axis=1).corrwith(data['num']).plot(kind='bar', grid=True, figsize=(12, 8), title="Correlation with target")

We see that exang has the highest prositive correlation, followed by oldpeak and then cp. Thalach has the highest negative correlation.

Based on the correlation of the features with the target variable, we chose the first 4 positively highly correlated features. We finish off by checking the pandas profiling:

pp.ProfileReport(df=data, dark_mode=True, explorative=True)

From the overview, we are able to see we have to warnings which we will ignore because:

1. df_index has unique values. This is because it is the index column, so it has all unique values.
2. oldpeak has 188 (64.2%) zeros. The data is not normalized, hence most values are 0.

Next steps

1. We shuffle the data to introduce some randomness: we maintain the same random state for all operations.
2. We remove less relevant features and remain with the top 4 features, 3 postively correlated with the target variable and 1 negatively correlated with the target variable.
3. We normalize the data using sklearn.preprocessing.MinMaxScaler between ranges -2pi and 2pi. This is to ensure we utilize the Hilbert space appropriately as we will be encoding the data into quantum states via rotation angles.
4. We finally split the data into train and test sets, keeping the test size to 0.3 which is rather standard in classical machine learning.

def normalize_data(dataPath="../../Data/Processed/data.csv"):
    data = pd.read_csv(dataPath)
    data = shuffle(data, random_state=42)
    X, Y = data[['sex', 'cp', 'exang', 'oldpeak']].values, data['num'].values
    # normalize the data
    scaler = MinMaxScaler(feature_range=(-2 * np.pi, 2 * np.pi))
    X = scaler.fit_transform(X)
    X_train, X_test, Y_train, Y_test = train_test_split(X, Y, test_size=0.3, random_state=42)
    return X_train, X_test, Y_train, Y_test

Lets move to the next blog: Explaining Variational Quantum Classifiers
